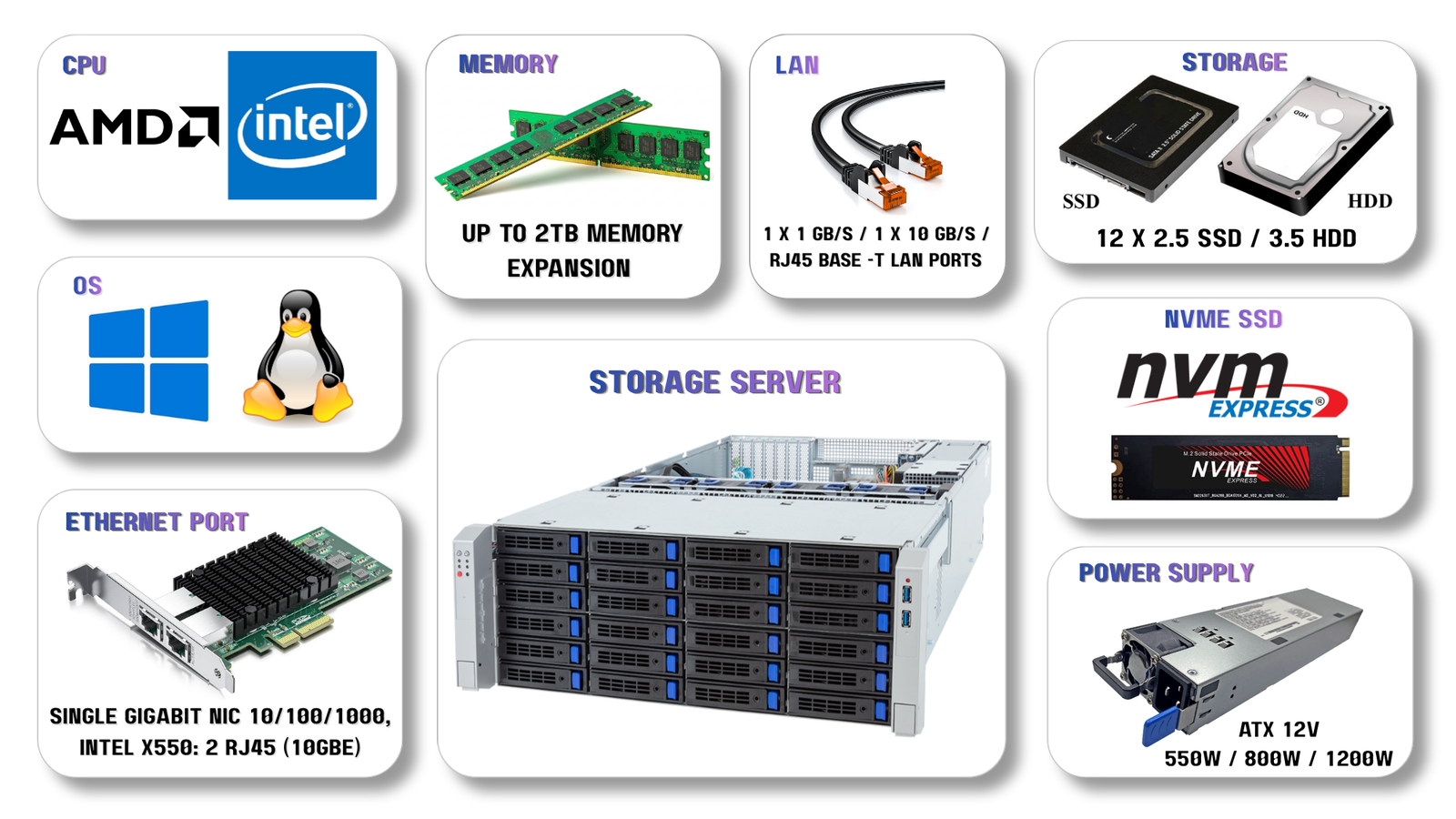

Enterprise-class storage platform engineered for AI, high performance computing, telecom infrastructure, virtualization and enterprise-scale storage workloads with high-density drive support, remote management and scalable PCIe expansion architecture.
Designed for modern datacenter infrastructure, AHPC NUVIN delivers scalable storage performance, enterprise reliability, remote management capabilities and high-efficiency thermal architecture.
Supports SATA, SAS and PCIe Gen3 storage interfaces with SlimSAS connectivity for up to 12 enterprise drives.
Built for enterprise AI, HPC, telecom and virtualization environments with scalable datacenter-ready infrastructure.
Integrated 1G and 10G LAN connectivity for high-speed storage communication and low latency data transfer.
Integrated ASPEED AST2600 management controller with advanced web-based remote monitoring and system administration.
Hot-swap cooling system with multiple high-efficiency fans designed for continuous enterprise operation.
Supports 500W, 800W and 1200W power supply configurations for scalable deployment requirements.
Detailed enterprise storage platform specifications.
| Dimensions | L650 × W431 × H88 mm |
|---|---|
| Motherboard | E-ATX (12” x 13”) |
| Chipset | System on Chip |
| LAN | 1G / 10G RJ45 |
| Storage | 12 × SATA via SlimSAS |
| Expansion | PCIe Gen4 x16 |
| USB | USB 3.0 ×2 |
| Graphics | ASPEED AST2600 |
| Management | Web-based console |
| Power Supply | 500W / 800W / 1200W |
| Cooling | Hot-swap 8cm fans ×4 |
|---|---|
| Material | SECC Steel |
| Operating Temp | 10°C to 35°C |
| Humidity | 8% to 80% |
| Non-Operating Temp | -40°C to 60°C |
| Security | Kensington lock support |
| Front Panel | Power, Reset, USB |
| Indicators | Power, HDD, LAN LEDs |
| Applications | AI, HPC, Telecom, Enterprise Storage |
